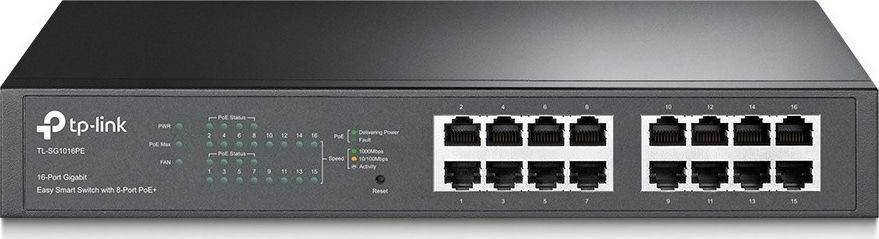

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
<
>
<
>
Images are illustrative. The product shown may differ from the one offered or include components not part of the product set.
VendorTP-LINK
Product codeTL-SG1016PE
Warranty
5 years
Price€146.51
Price (excl. VAT)€118.15
Ships in
3-5 bd
Quantity5+ pcs
Inbank financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Product colour:
Black
Rack mounting:
Yes
LED indicators:
Yes
Housing material:
Metal
Stackable:
No
Form factor:
1U
Number of fans:
1 fan(s)
Power source:
AC/PoE
AC input frequency:
50/60 Hz
Power consumption (max):
124.4 W
AC input voltage:
100 - 240 V
Power supply included:
Yes
IGMP snooping:
Yes
Storage temperature (T-T):
-40 - 70 °C
Operating temperature (T-T):
0 - 40 °C
Operating relative humidity (H-H):
10 - 90%
Storage relative humidity (H-H):
5 - 90%
Web-based management:
Yes
Quality of Service (QoS) support:
Yes
Switch type:
Managed
Switch layer:
L2
Width:
294 mm
Depth:
180 mm
Height:
44 mm
Networking standards:
IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i
Auto-negotiation:
Yes
Auto MDI/MDI-X:
Yes
Port mirroring:
Yes
Copper ethernet cabling technology:
10BASE-T, 1000BASE-T, 100BASE-TX
VLAN support:
Yes
10G support:
No
Flow control support:
Yes
Number of VLANs:
4000
Broadcast storm control:
Yes
Virtual LAN features:
Tagged VLAN, Port-based VLAN
Cable types supported:
Cat4, Cat5, Cat5e, Cat3, Cat6
Link aggregation:
Yes
Maximum cable length:
100 m
Package type:
Box
Resource CD:
Yes
Cables included:
AC
User guide:
Yes
Rack mount kit:
Yes
Compliance certificates:
Federal Communications Commission (FCC), RoHS, CE
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Power connector:
AC-in jack
Basic switching RJ-45 Ethernet ports quantity:
16
Gigabit Ethernet (copper) ports quantity:
16
MAC address table:
8000 entries
Switching capacity:
32 Gbit/s
Packet buffer memory:
4.1 MB
Jumbo frames support:
Yes
Store-and-forward:
Yes
Forwarding rate:
23.8 Mpps
Number of queues:
4
Jumbo frames:
10000
Power over Ethernet (PoE):
Yes
Total Power over Ethernet (PoE) budget:
110 W
Power over Ethernet (PoE) power per port:
30 W
Power over Ethernet plus (PoE+) ports quantity:
8
Warnings:
Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Sustainability compliance:
Yes
