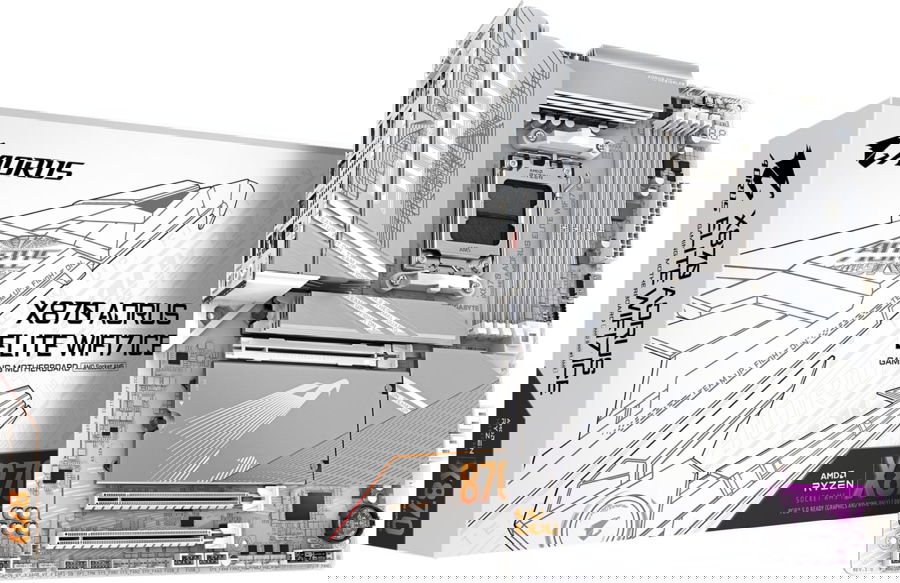

GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
VendorGigabyte
Product codeX870 AORUS ELITE WF7 ICE
Warranty
3 years
Price€305.30
Price (excl. VAT)€246.21
Delivery3-5 workdays
Quantity4 pcs
TransportFREE IN ESTONIA!
Inbank financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Ships quicker
Warranty period:
3 year(s)
Processor manufacturer:
AMD
Compatible processor series:
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor socket:
Socket AM5
Maximum internal memory supported by processor:
256 GB
Supported processor sockets:
Socket AM5
Parallel processing technology support:
Not supported
Number of displays supported:
4
On-board graphics card:
Yes
On-board graphics card model:
AMD Radeon Graphics
Maximum resolution:
4096 x 2160 pixels
HDCP:
Yes
DirectX version:
12.0
Windows operating systems supported:
Windows 11 x64
Product colour:
White
Motherboard chipset:
AMD X870
PC health monitoring:
Fan, Voltage, Noise, Water cooling, Temperature
Audio output channels:
7.1 channels
Motherboard form factor:
ATX
Audio chip:
Realtek ALC1220
Motherboard chipset family:
AMD
Memory slots type:
DIMM
Memory channels:
Dual-channel
ECC сompatibility:
Non-ECC
Maximum internal memory per slot:
64 GB
Supported memory clock speed (max):
8200 MHz
Supported memory types:
DDR5-SDRAM
Number of memory slots:
4
Supported memory clock speeds:
6800, 6200, 6666, 5200, 7600 MHz, 7800, 6000, 6600, 4400, 8000 MHz, 6400, 4800, 7000, 5600, 7200, 8200 MHz
Maximum internal memory:
256 GB
Unbuffered memory:
Yes
Height:
35 mm
Width:
305 mm
Depth:
244 mm
Top Wi-Fi standard:
Wi-Fi 7 (802.11be)
Bluetooth version:
5.4
Wi-Fi standards:
802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g
Ethernet interface type:
2.5 Gigabit Ethernet
Ethernet LAN:
Yes
WLAN controller model:
MediaTek MT7925
Wi-Fi:
Yes
Bluetooth:
Yes
LAN controller:
Realtek RTL8125
Number of CPU fan connectors:
2
TPM connector:
Yes
Front panel connector:
Yes
Number of SATA III connectors:
4
Number of chassis fan connectors:
6
Total number of SATA connectors:
4
EPS power connector (8-pin):
Yes
USB 3.2 Gen 2x2 connectors:
1
RGB LED pin header:
Yes
CPU fan connector:
Yes
ATX Power connector (24-pin):
Yes
12V power connector:
Yes
Number of RGB LED pin headers:
4
Number of water pump connectors:
3
Front panel audio connector:
Yes
Number of EPS power connectors (8-pin):
2
USB 2.0 connectors:
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
Clear CMOS button:
Yes
Clear CMOS jumper:
Yes
Desktop Management Interface (DMI) version:
2.7
BIOS type:
UEFI AMI
Screws included:
Yes
Antenna included:
Yes
Batteries included:
Yes
Number of HDDs supported:
4
RAID levels:
0, 10, 1
Number of storage drives supported:
8
RAID support:
Yes
Supported storage drive interfaces:
M.2
Supported storage drive types:
HDD & SSD
Headphone outputs:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
2
HDMI ports quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
HDMI version:
2.1
WiFi-AP antenna jack:
2
Microphone in:
Yes
USB 2.0 ports quantity:
4
USB4 Gen 3x2 ports quantity:
2
S/PDIF out port:
Yes
DisplayPort version:
1.4
4th M.2 largest key size:
22110
3rd M.2 largest key size:
22110
2nd M.2 highest PCI Express generation:
5.0
PCI Express x16 (Gen 5.x) slots:
1
PCI Express x16 (Gen 4.x) slots:
1
1st M.2 largest key size:
25110
1st M.2 highest PCI Express generation:
5.0
PCI Express x16 (Gen 3.x) slots:
1
Number of M.2 (M) slots:
4
2nd M.2 largest key size:
22110
4th M.2 highest PCI Express generation:
4.0
3rd M.2 highest PCI Express generation:
5.0
Lithium weight per battery:
0.07 g
Battery type:
CR2032
Battery weight:
3 g
Battery technology:
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells:
1
Weight:
2.4 kg
Products per shipping (inner) case:
1 pc(s)
Country of origin:
China
Warnings:
Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
