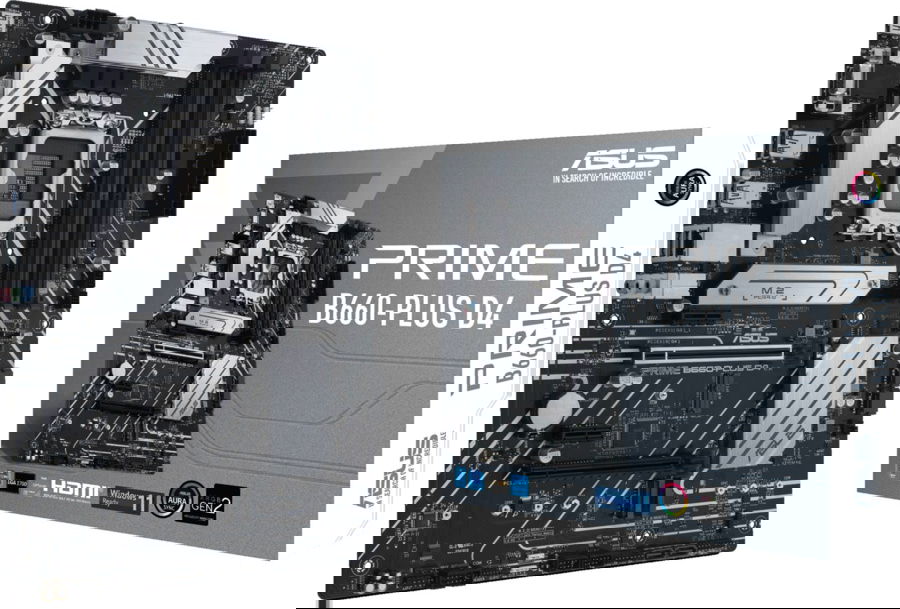

ASUS PRIME B660-PLUS D4 Intel B660 LGA 1700 ATX
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
VendorASUS
Product code90MB18X0-M1EAY0
Warranty
3 years
Price€132.61
Price (excl. VAT)€106.94
Delivery3-5 workdays
Quantity5+ pcs
TransportFREE IN ESTONIA!
Inbank financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Ships quicker
Processor socket:
LGA 1700
Supported processor sockets:
LGA 1700
Compatible processor series:
Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer:
Intel
Windows operating systems supported:
Windows 11 x64, Windows 10 x64
Power source type:
ATX
Motherboard form factor:
ATX
Audio output channels:
7.1 channels
Motherboard chipset family:
Intel
Motherboard chipset:
Intel B660
Supported memory types:
DDR4-SDRAM
Memory slots type:
DIMM
Number of memory slots:
4
Memory channels:
Dual-channel
Supported memory clock speeds:
2133 MHz, 3333, 3000, 2400, 2800, 5066, 2933, 3600, 3733, 4400, 5000, 4600, 2666 MHz, 4266, 4000, 4800, 3400, 3866, 3466
Unbuffered memory:
Yes
Maximum internal memory:
128 GB
ECC сompatibility:
Non-ECC
Height:
53 mm
Width:
305 mm
Depth:
244 mm
Wi-Fi:
No
Ethernet LAN:
Yes
Ethernet interface type:
2.5 Gigabit Ethernet
Chassis intrusion connector:
Yes
RGB LED pin header:
Yes
Number of COM connectors:
1
TPM connector:
Yes
EPS power connector (8-pin):
Yes
Front panel connector:
Yes
S/PDIF out connector:
Yes
ATX Power connector (24-pin):
Yes
USB 2.0 connectors:
2
Number of chassis fan connectors:
3
Number of SATA III connectors:
4
Thunderbolt headers:
1
CPU fan connector:
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
Front panel audio connector:
Yes
Clear CMOS jumper:
Yes
BIOS type:
UEFI AMI
Cables included:
SATA
Number of HDDs supported:
4
Number of storage drives supported:
7
Supported storage drive interfaces:
M.2, PCI Express 4.0, SATA III
RAID levels:
0, 5, 10, 1
Supported storage drive types:
HDD & SSD
RAID support:
Yes
HDMI ports quantity:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
1
Headphone outputs:
3
VGA (D-Sub) ports quantity:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
2
HDMI version:
2.1
DisplayPorts quantity:
1
USB connector type:
USB Type-C, USB Type-A
Ethernet LAN (RJ-45) ports:
1
DisplayPort version:
1.4
USB 2.0 ports quantity:
2
PCI Express x16 (Gen 4.x) slots:
1
Number of M.2 (M) slots:
3
PCI Express x1 (Gen 3.x) slots:
2
PCI Express x16 (Gen 3.x) slots:
1
Weight:
891 g
Harmonized System (HS) code:
84733020
Warnings:
Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply.
