Power Supply|ENDORFY|SUPREMO FM6|850 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|EY7A012
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaEndorfy
TootekoodEY7A012
Garantii
2 aastat
Hind129,10 €
Hind (km-ta)104,11 €
Tarneaeg
1-3 tp
Kogus5+ tk
Inbank järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.

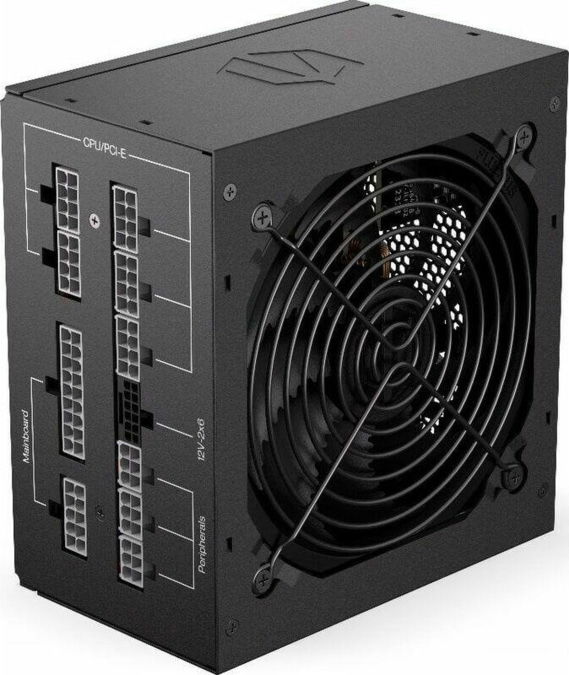

Supremo FM6 850 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.
Supremo FM6 850 W
Supremo FM6 850 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.
The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.
Ready for latest ATX 3.1 standards
Supremo FM6 850 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.
80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 850 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life.
Silence first
Supremo FM6 850 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.
Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 850 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions.
Summary:
ENDORFY Supremo FM6 850 W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 560 mm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Tootja koduleht:
https://endorfy.com/en/product/supremo-fm6-850-w/
Category Code:
PSU
CnCode:
85044095
Unit Box Height:
0.22
Unit Box Length:
0.1
Unit Box Width:
0.27
VV sisendsagedus:
50/60 Hz
VV sisendpinge:
100 - 240 V
Koondvõimsus (+12 V):
840 W
Koondvõimsus (+3,3 V):
66 W
Koondvõimsus (+5 V):
100 W
Koondvõimsus (+5 Vsb):
15 W
Koondvõimsus (-12V):
3.6 W
Sisendvool:
13 - 6.5 A
Max väljundvool (+12 V):
70 A
Max väljundvool (3,3 V):
20 A
Max väljundvool (+5 V):
20 A
Max väljundvool (+5 Vsb):
3 A
Max väljundvool (-12 V):
0.3 A
Võimsusteguri korrektsiooni (PFC) tüüp:
Active
Toitekaitse funktsioonid:
Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Koguvõimsus:
850 W
Kaabelduse tüüp:
Fully-Modular
EPS power connector (4+4 pin):
Jah
Emaplaadi toitepistmik:
24-pin ATX
SATA toitepistmike arv:
8
PCI Express power connectors (12+4 pin):
1
PCI Expressi toitepistmikud (6+2 kontakti):
3
Välisseadmete (Molex) toitepistmikud (4 kontakti):
1
SATA power cable length:
560 mm
80 PLUSi sertifikaat:
80 PLUS Gold
ATXi versioon:
3.1
Laagritehnoloogia:
FDB
Keskmine tõrgetevaheline aeg (MTBF):
100000 h
Power supply unit (PSU) form factor:
ATX
Otstarve:
PC
Jahutuse tüüp:
Active
Ventilaatori läbimõõt:
120 mm
Ventilaatori asukoht:
Top
Ventilaatori kiirus:
1260 - 1540 RPM
Valgustus:
Ei
LED-indikaatorid:
Ei
Ventilaatorite arv:
1 fan(s)
On/off fan switch:
Ei
Sisse-/väljalüliti:
Jah
Product colour:
must
Kaasasolevad kaablid:
AC
Compliance certificates:
CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
Sügavus:
150 mm
Kõrgus:
87 mm
Kaal:
1460 g
Laius:
140 mm
Kasti või suurkarbi mõõtmed (L x S x K):
600 x 235 x 290 mm
Kasti või suurkarbi kaal:
17000 kg
Juhend:
Jah
Package depth:
270 mm
Package height:
95 mm
Pakendi tüüp:
Karp
Pakendi kaal:
2740 g
Package width:
220 mm
Doesn't contain:
Cadmium/Lead/Mercury
Päritoluriigid:
China
Warranty period:
10 year(s)
Mudeli nimi:
SUPREMO FM6
Units per Shipping Box:
1
Unit Calculated Volume:
0.00594 cubm
Unit Calculated Weight:
2.72 kg
