Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-AD4-CSM
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaASUS
TootekoodPRIME B760M-A D4-CSM
Garantii
3 aastat
Hind112,10 €
Hind (km-ta)90,40 €
Tarneaeg
1-3 tp
Kogus5+ tk
Inbank järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.

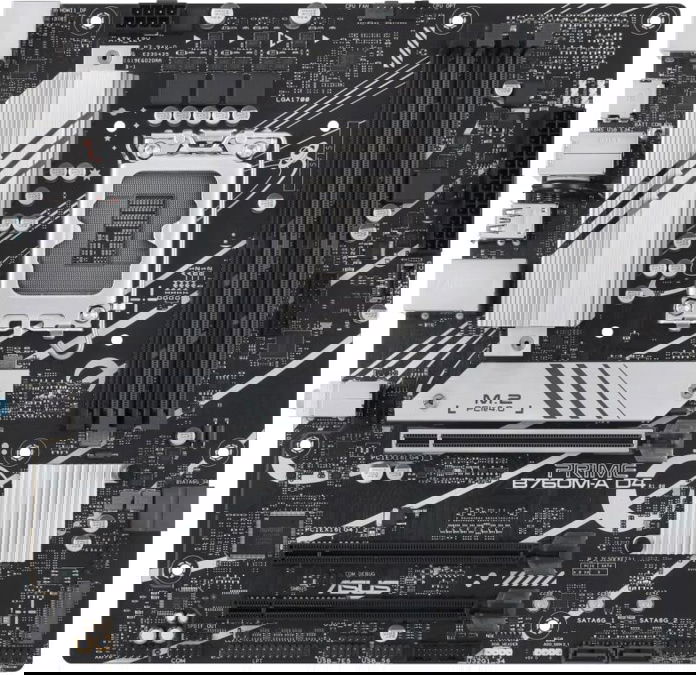

PRIME B760M-A D4-CSM
Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Tootja koduleht:
www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-d4-csm/
Category Code:
MBI
Unit Box Height:
0.05
Unit Box Length:
0.26
Unit Box Width:
0.27
M.2:
2
PCI-Express 4.0 16x:
1
Audio port:
3
DisplayPort:
1
HDMI:
1
PS / 2:
1
RJ45:
1
USB 2.0:
4
USB 3.2:
2
SATA:
Jah
Mudel:
PRIME B760M-A D4-CSM
Kiibistik:
Intel B760 Express
Pesa:
LGA1700
Form Factor:
Micro-ATX
Mälu tüüp:
DDR4
Kiirus:
2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz
Mälupesad:
4
Integreeritud video:
Depending on CPU
Integreeritud võrgukaart:
2.5 Gigabit
Integreeritud helikaart:
Jah
RAID:
SATA 0, 1, 5, 10
TPM:
Header
Kaasasolevad tarvikud:
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide
Units per Shipping Box:
10
Unit Calculated Volume:
0.004547 cubm
Product Net Weight:
0.7 kg
Unit Calculated Weight:
1.15 kg
