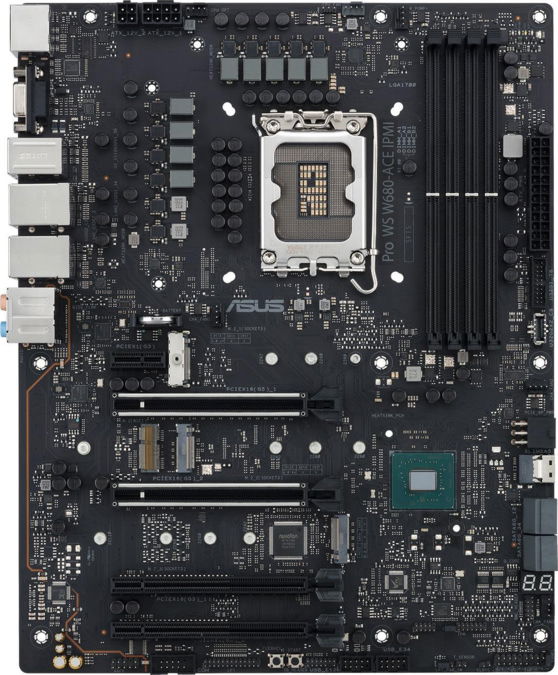

ASUS PRO WS W680-ACE IPMI (ATX, W680, LGA 1700, DDR5)
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaASUS
Tootekood90MB1DN0-M0EAY1
Hind623,00 €
Hind (km-ta)502,42 €
Tarneaeg
3-5 tp
Kogus1 tk
Inbank järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Processor manufacturer:
Intel
Processor socket:
LGA 1700
Compatible processor series:
Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors:
1
Supported processor sockets:
LGA 1700
Supported memory types:
DDR5-SDRAM
Number of memory slots:
4
Maximum internal memory:
128 GB
Memory slots type:
DIMM
Memory channels:
Dual-channel
ECC сompatibility:
ECC & Non-ECC
Unbuffered memory:
Yes
Supported storage drive interfaces:
M.2, NVMe, SATA III
Supported storage drive types:
HDD & SSD
RAID support:
Yes
RAID levels:
0, 1, 5, 10
Parallel processing technology support:
Not supported
USB 2.0 connectors:
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
1
Number of SATA III connectors:
4
Front panel audio connector:
Yes
Front panel connector:
Yes
ATX Power connector (24-pin):
Yes
CPU fan connector:
Yes
Number of chassis fan connectors:
3
Peripheral (Molex) power connectors (4-pin):
1
EPS power connector (8-pin):
Yes
Number of COM connectors:
1
TPM connector:
Yes
Thunderbolt headers:
1
12V power connector:
Yes
Integrated SAS ports:
1
USB 2.0 ports quantity:
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
1
Ethernet LAN (RJ-45) ports:
2
VGA (D-Sub) ports quantity:
1
HDMI ports quantity:
1
DVI-D ports quantity:
0
IPMI LAN (RJ-45) port:
Yes
HDMI version:
2.1
DisplayPorts quantity:
1
DisplayPort version:
1.4
Line-in:
Yes
Microphone in:
Yes
Wi-Fi:
No
Ethernet LAN:
Yes
Ethernet interface type:
2.5 Gigabit Ethernet
Component for:
PC
Motherboard form factor:
ATX
Motherboard chipset family:
Intel
Motherboard chipset:
Intel W680
Audio output channels:
7.1 channels
Cooling type:
Passive
Power source type:
ATX
Windows operating systems supported:
Windows 10, Windows 11
PCI Express x1 (Gen 3.x) slots:
1
PCI Express x16 (Gen 3.x) slots:
2
PCI Express x16 (Gen 5.x) slots:
2
Number of M.2 (M) slots:
3
BIOS type:
UEFI AMI
BIOS memory size:
256 Mbit
Width:
305 mm
Depth:
244 mm
Cables included:
SATA, USB
User guide:
Yes
Back-to-BIOS button:
Yes
Number of M.2 (E) slots:
1
