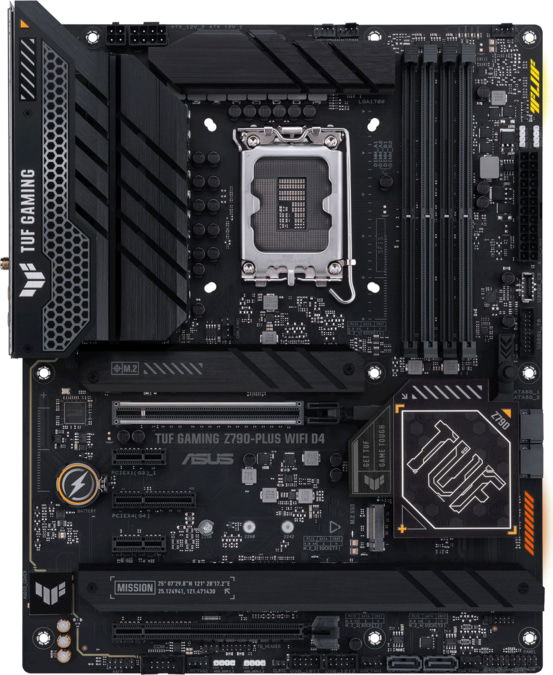

ASUS TUF Gaming Z790-Plus WiFi D4, Intel Z790 Mainboard - Sockel 1700, DDR4
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaASUS
Tootekood90MB1CR0-M0EAY0
Hind258,80 €
Hind (km-ta)212,13 €
Tarneaeg Otsas
TransportTASUTA ÜLE EESTI!
Saadaval kiiremini
Processor manufacturer:
Intel
Processor socket:
LGA 1700
Compatible processor series:
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets:
LGA 1700
Supported memory types:
DDR4-SDRAM
Number of memory slots:
4
Maximum internal memory:
128 GB
Memory slots type:
DIMM
Memory channels:
Dual-channel
ECC сompatibility:
Non-ECC
Supported memory clock speeds:
5333,5133,5066,5000,4800,4700,4600,4500,4400,4266,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
Supported memory clock speed (max):
5333 MHz
Unbuffered memory:
Yes
Supported storage drive interfaces:
M.2, SATA III
Supported storage drive types:
HDD & SSD
RAID support:
Yes
RAID levels:
0, 1, 5, 10
Parallel processing technology support:
Not supported
On-board graphics card:
No
USB 2.0 connectors:
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
1
Number of SATA III connectors:
4
USB 3.2 Gen 2x2 connectors:
0
Number of SATA II connectors:
0
Number of SATA connectors:
0
Front panel audio connector:
Yes
ATX Power connector (24-pin):
Yes
CPU fan connector:
Yes
Number of chassis fan connectors:
4
EPS power connector (8-pin):
Yes
Thunderbolt headers:
1
12V power connector:
Yes
RGB LED pin header:
Yes
USB 2.0 ports quantity:
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
1
Ethernet LAN (RJ-45) ports:
1
VGA (D-Sub) ports quantity:
0
HDMI ports quantity:
1
DVI-D ports quantity:
0
USB 3.2 Gen 2x2 Type-C ports quantity:
1
USB4 Gen 2x2 ports quantity:
0
USB4 Gen 3x2 ports quantity:
0
PS/2 ports quantity:
0
HDMI version:
2.1
DVI-I ports quantity:
0
DisplayPorts quantity:
1
DisplayPort version:
1.4
Headphone outputs:
1
Line-in:
Yes
Microphone in:
Yes
S/PDIF out port:
Yes
WiFi-AP antenna jack:
2
Wi-Fi:
Yes
Ethernet LAN:
Yes
Ethernet interface type:
2.5 Gigabit Ethernet
Top Wi-Fi standard:
Wi-Fi 6 (802.11ax)
Wi-Fi standards:
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth:
Yes
Bluetooth version:
5.2
Component for:
PC
Motherboard form factor:
ATX
Motherboard chipset family:
Intel
Motherboard chipset:
Intel Z790
Audio output channels:
7.1 channels
Audio chip:
Realtek S1220A
Product colour:
Black
Power source type:
ATX
Windows operating systems supported:
Windows 10, Windows 11
PCI Express x1 slots:
0
PCI Express x1 (Gen 2.x) slots:
0
PCI Express x1 (Gen 3.x) slots:
2
PCI Express x1 (Gen 4.x) slots:
0
PCI Express x4 slots:
0
PCI Express x4 (Gen 1.x) slots:
0
PCI Express x4 (Gen 2.x) slots:
0
PCI Express x4 (Gen 4.x) slots:
1
PCI Express x8 slots:
0
PCI Express x8 (Gen 1.x) slots:
0
PCI Express x16 slots:
0
PCI Express x16 (Gen 2.x) slots:
0
PCI Express x16 (Gen 3.x) slots:
0
PCI Express x16 (Gen 4.x) slots:
1
PCI Express x16 (Gen 5.x) slots:
1
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots:
0
PCI slots:
0
Mini PCI Express slots:
0
Mini PCI Express (Gen 1.x) slots:
0
Mini PCI Express (Gen 2.x) slots:
0
Mini PCI Express slot (full length):
0
Mini PCI Express slot (half-length):
0
Number of M.2 (M) slots:
4
BIOS type:
UEFI AMI
BIOS memory size:
192 Mbit
Clear CMOS button:
Yes
Package width:
340 mm
Package depth:
275 mm
Package height:
70 mm
Package weight:
2.14 kg
Width:
305 mm
Depth:
244 mm
Cables included:
SATA
User guide:
Yes
Drivers included:
Yes
mSATA ports quantity:
0
