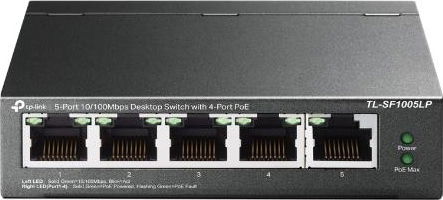

Switch|TP-LINK|5x10Base-T / 100Base-TX|PoE ports 4|TL-SF1005LP
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaTP-LINK
TootekoodTL-SF1005LP
Garantii
5 aastat
Hind28,71 €
Hind (km-ta)23,15 €
Tarneaeg
1-3 tp
Kogus5+ tk
Inbank järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Saadaval kiiremini
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
TL-SF1005LP
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
- 5× 10/100 Mbps RJ45 ports
- 4× PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports*
- Plug and play with no configuration required
Summary:
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
Tootja koduleht:
https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sf1005lp/#overview
Category Code:
SWI
Unit Box Height:
0.13
Unit Box Length:
0.2
Unit Box Width:
0.125
Kommutaatori tüüp:
Unmanaged
Baaskommutatsiooni RJ-45 Etherneti portide arv:
5
Baaskommutatsiooni RJ-45 Etherneti portide tüüp:
Fast Ethernet (10/100)
10G toetus:
Ei
Automaatne MDI / MDI-X:
Jah
Automaatläbirääkimised:
Jah
Toetatud kaablitüübid:
Cat3/Cat4/Cat5/Cat5e
Võrgukaabli tehnoloogia:
100BASE-TX/10BASE-T
Voo reguleerimise tugi:
Jah
Full duplex:
Jah
Half duplex:
Jah
MAC address auto-aging supported:
Jah
Võrgustandardid:
IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Edastuskiirus:
0.744 Mpps
Jumbo frames:
2000
Jumbo-kaadrite tugi:
Jah
MAC-aadresside tabel:
2000 entries
Store-and-forward:
Jah
Kommuteerimisvõime:
1 Gbit/s
LED-indikaatorid:
Jah
Product colour:
must
Püstikukinnitus:
Ei
Fanless:
Jah
VV sisendsagedus:
50 Hz
VV sisendpinge:
220 V
Sisendvool:
0.81 A
Sisendpinge:
53.5 V
Energiatarve (max):
47 W
Toiteallikas:
DC/PoE
Toiteadapter kaasas:
Jah
Power over Ethernet (PoE):
Jah
Ethernetitoite (PoE) portide arv:
4
Funktsiooni Power over Ethernet (PoE) koguvõimsusvaru:
41 W
Soojaeralduvus:
160.27 BTU/h
Operating relative humidity (H-H):
10 - 90 %
Töötemperatuur:
0 - 40 °C
Storage relative humidity (H-H):
5 - 90 %
Säilitustemperatuur:
-40 - 70 °C
Sügavus:
98 mm
Kõrgus:
25 mm
Laius:
100 mm
Kasutusjuhend:
Jah
VV-adapter kaasas:
Jah
Package depth:
196 mm
Package height:
121 mm
Pakendi kaal:
740 g
Package width:
131 mm
Sustainability compliance:
Jah
Compliance certificates:
CE/Federal Communications Commission (FCC)/RoHS
Harmonized System (HS) code:
85176990
Mudel:
TL-SF1005LP
Units per Shipping Box:
1
Unit Calculated Volume:
0.00325 cubm
Unit Calculated Weight:
0.743 kg
