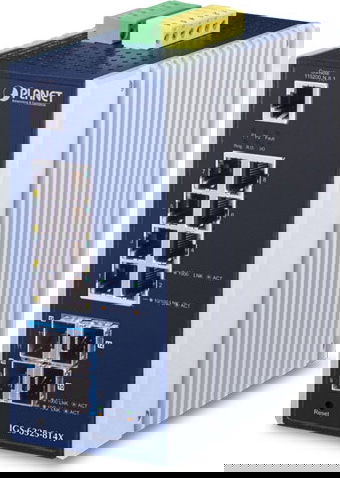

PLANET Industrial L3 8-Port 1000T + 4-Port 10G SFP+
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaPlanet
TootekoodIGS-6325-8T4X
Hind701,90 €
Hind (km-ta)575,33 €
Tarneaeg6-9 tp
Kogus1 tk
TransportTASUTA ÜLE EESTI!
Inbank järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Switch type:
Managed
Switch layer:
L3
Quality of Service (QoS) support:
Yes
System event log:
Yes
MIB support:
RFC 1213 MIB-II, RFC 1493 MIB, RFC 1643, RFC 2863 Interface MIB, RFC 2665, RFC 2819 RMON (1, 2, 3. 9), RFC 2737 MIB, RFC 2618 RADIUS MIB, RFC 2863 IF-MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-MIB, RFC 4292 IP MIB, RFC 4293 IP MIB, RFC 4836 MAU-MIB, IEEE 802.1X PAE, LLDP
Basic switching RJ-45 Ethernet ports quantity:
8
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Fiber ports quantity:
4
Fiber optic connector:
SFP+
Console port:
RJ-45
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:
Yes
Port mirroring:
Yes
Full duplex:
Yes
Flow control support:
Yes
Link aggregation:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
Virtual LAN features:
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
MAC address table:
16000 entries
Switching capacity:
96 Gbit/s
Throughput:
71.43 Mpps
Store-and-forward:
Yes
Number of trunks:
14
Jumbo frames support:
Yes
Jumbo frames:
10000
Packet buffer memory:
32 MB
Access Control List (ACL):
Yes
IGMP snooping:
Yes
IGMP entries:
255
Security algorithms:
SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Product colour:
Blue, Grey
Housing material:
Aluminium
LED indicators:
Yes
International Protection (IP) code:
IP30
Wall mountable:
Yes
DIN rail mounting:
Yes
Certification:
FCC 15 A
CE:
EN55032
EN55035
EN 62368-1/IEC 62368-1: 2014
Memory type:
SDRAM
Internal memory:
512 MB
Flash memory:
64 MB
Firmware upgradeable:
Yes
DC input voltage:
12 - 48 V
Input current:
4/1.5 A
Power over Ethernet (PoE):
No
Operating temperature (T-T):
-40 - 75 °C
Storage temperature (T-T):
-40 - 85 °C
Operating relative humidity (H-H):
5 - 95%
Width:
76 mm
Depth:
107 mm
Height:
152 mm
Weight:
1.25 kg
Harmonized System (HS) code:
85176990
