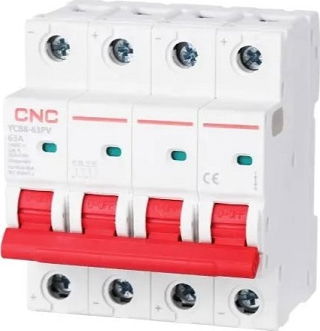

CNC DC Miniature Circuit Breaker, 4P, 63A, Cat.A, 1000VDC, 6kA
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaCNC
TootekoodNV821679
Hind43,00 €
Hind (km-ta)34,68 €
Tarneaeg5-7 tp
Kogus5 tk
TransportTASUTA ÜLE EESTI!
Inbank järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
DC Miniature Circuit Breaker, 4P, 63A, Cat.A, 6kA
Features:
The rated voltage of the DC circuit breaker can reach 1000V, and the rated operating current can reach 63A.
Ensures reliable operation of DC systems.
Used for isolation, short circuit and overload protection.
Modular construction. Installation on a standard Din rail.
Contact position indication (red indicated closed, green indicates opened).
Meets IEC/EN 60947-2 standards and EU ROHS environmental protection requirements.
Suitable for photovoltaic, industrial, civil, communication and other systems.
Technical data: Number of poles: 4. Nominal current (In): 63 A. Class: A. Rated voltage (Ue): DC 1000 V. Insulation voltage (Ui): 1200 V. Ultimate breaking capacity (Icu): 6000 A. Rated impulse withstand voltage (Uimp): 4000 V. Tripping type: thermomagnetic. Mechanical life: 20000 times. Electrical life: 1500 times. Safety class: IP20. Wire cross-section area: 2.5 - 25mm². Installation: on a DIN rail (35mm). Operating temperature: -35°C~+70°C. Storage temperature: -40°C~+85°C. Dimensions: 71.2 x 82 x 78 mm. Standards: IEC 60947-2 / EN 60947-2.
Warranty: 24 months.
