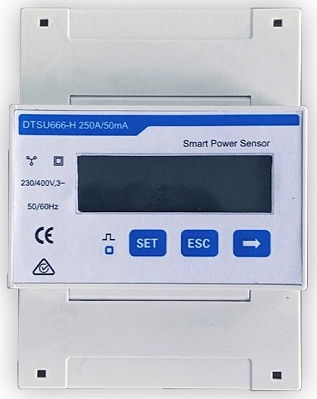

PV Smart Meter HUAWEI DTSU666-H, 250A
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaHuawei
TootekoodDTSU666-H
Hind236,42 €
Hind (km-ta)190,66 €
Tarneaeg5-7 tp
Kogus3 tk
TransportTASUTA ÜLE EESTI!
Inbank järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO järelmaksu kalkulaator
Tähelepanu! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
PV smart meter 250A, 3-phase, with RS485, Modbus, 3P4W
Features:
The smart meter is designed for grid export limitation and self-consumption monitoring.
Compatible with Huawei PV inverters.
Class1 measurement reliability.
With LCD display.
Smart Meter is easy to mount on DIN rail 3.5mm.
Specifications: Nominal voltage: AC 230V~400V. Power grid type: 3P4W. L-L voltage range: AC 304V ~ 499V. L-N voltage range: AC 176V ~ 288V. Current: 250A/ 50mA. Frequency: 50/60Hz. Number of phases: 3. Accuracy class: class 1 (voltage +/-0.5%, current /power +/-1%, frequency +/-0.01Hz). Interface: RS485. Baud rate 9600 bit/s. Communication protocol: Modbus RTU. Installation: on DIN rail 35mm. Dimensions: 102x72x65.5 mm. Operating temperature: -25°C to 60°C. Operating humidity: 5-95% non-condensing. Weight: 840g. Colour: white. Certifications: EN 61326-1:2013; IEC 61326-1:2012; EN 61326-2-1:2013; IEC 61326-2-1:2012; EN 61010-1:2010; IEC 61010-1:2010; EN 61010-2-1:2010; IEC 61010-2-1:2010. Consumption: 1W. RS485 cable length: 10m.
Warranty: 24 months.
Download Specification DTSU666-H.pdf
Specifications: Nominal voltage: AC 230V~400V. Power grid type: 3P4W. L-L voltage range: AC 304V ~ 499V. L-N voltage range: AC 176V ~ 288V. Current: 250A/ 50mA. Frequency: 50/60Hz. Number of phases: 3. Accuracy class: class 1 (voltage +/-0.5%, current /power +/-1%, frequency +/-0.01Hz). Interface: RS485. Baud rate 9600 bit/s. Communication protocol: Modbus RTU. Installation: on DIN rail 35mm. Dimensions: 102x72x65.5 mm. Operating temperature: -25°C to 60°C. Operating humidity: 5-95% non-condensing. Weight: 840g. Colour: white. Certifications: EN 61326-1:2013; IEC 61326-1:2012; EN 61326-2-1:2013; IEC 61326-2-1:2012; EN 61010-1:2010; IEC 61010-1:2010; EN 61010-2-1:2010; IEC 61010-2-1:2010. Consumption: 1W. RS485 cable length: 10m.
Warranty: 24 months.
Download Specification DTSU666-H.pdf
