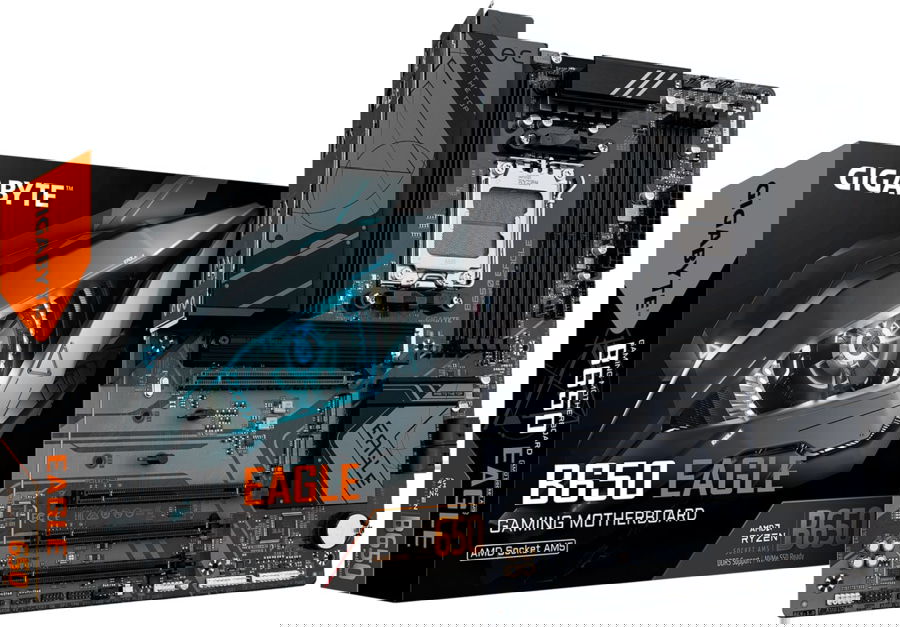

GIGABYTE B650 EAGLE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
VendorGigabyte
Product codeB650 EAGLE
Warranty
3 years
Price€141.30
Price (excl. VAT)€113.95
Delivery
3-5 workdays
Quantity5+ pcs
Inbank financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Ships quicker
Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|6xUSB 2.0|2xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|B650EAGLE
Product code: B650EAGLE
Product code: B650EAGLE
1 pcs
1-3 workdays
€130.89
Mainboard|GIGABYTE|AMD B650|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|3xNumber of M.2 (M) slots|B650 EAGLE AX (rev. 1.2)|B650EAGLE1.2
Product code: B650 EAGLE 1.2
Product code: B650 EAGLE 1.2
5+ pcs
1-3 workdays
€130.89
Warranty period:
3 year(s)
Processor manufacturer:
AMD
Compatible processor series:
AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor socket:
Socket AM5
Supported processor sockets:
Socket AM5
DirectX version:
12.0
HDCP:
Yes
Maximum resolution:
4096 x 2160 pixels
Parallel processing technology support:
Not supported
Windows operating systems supported:
Windows 10 x64, Windows 11 x64
Audio output channels:
7.1 channels
Motherboard chipset:
AMD B650
Motherboard form factor:
ATX
PC health monitoring:
Voltage, Fan, Temperature, Water cooling
Audio chip:
Realtek ALC897
Power source type:
ATX
Motherboard chipset family:
AMD
Product colour:
Bronze
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Supported memory types:
DDR5-SDRAM
Memory slots type:
DIMM
Maximum internal memory:
256 GB
Number of memory slots:
4
Supported memory clock speed (max):
7600 MHz
Supported memory clock speeds:
6600, 6000, 7000, 6400, 4400 MHz, 7600, 6800, 6200, 5200, 4800, 5600, 7200
Maximum internal memory per slot:
64 GB
ECC сompatibility:
Non-ECC
Width:
305 mm
Depth:
244 mm
Height:
35 mm
Wi-Fi:
No
Ethernet LAN:
Yes
Ethernet interface type:
Gigabit Ethernet
LAN controller:
Realtek RTL8111H
Front panel audio connector:
Yes
EPS power connector (8-pin):
Yes
Serial port headers:
1
Number of SATA III connectors:
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
RGB LED pin header:
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
1
Front panel connector:
Yes
TPM connector:
Yes
ATX Power connector (24-pin):
Yes
USB 2.0 connectors:
3
CPU fan connector:
Yes
Number of chassis fan connectors:
3
12V power connector:
Yes
Number of water pump connectors:
2
Number of RGB LED pin headers:
4
Number of CPU fan connectors:
2
Clear CMOS jumper:
Yes
BIOS type:
UEFI AMI
Desktop Management Interface (DMI) version:
2.7
Batteries included:
Yes
Screws included:
Yes
RAID levels:
0, 1, 10
Number of storage drives supported:
7
Supported storage drive interfaces:
M.2, SATA III
RAID support:
Yes
Number of HDDs supported:
4
Supported storage drive types:
HDD & SSD
HDMI version:
2.1
DisplayPort version:
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
2
DisplayPorts quantity:
1
HDMI ports quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
1
Ethernet LAN (RJ-45) ports:
1
USB 2.0 ports quantity:
6
PS/2 ports quantity:
1
Headphone outputs:
1
Line-in:
Yes
Microphone in:
Yes
PCI Express x16 (Gen 3.x) slots:
3
Number of M.2 (M) slots:
3
PCI Express x16 (Gen 4.x) slots:
1
2nd M.2 highest PCI Express generation:
4.0
1st M.2 largest key size:
25110
3rd M.2 highest PCI Express generation:
4.0
2nd M.2 largest key size:
22110
1st M.2 highest PCI Express generation:
5.0
3rd M.2 largest key size:
22110
Battery type:
CR2032
Battery technology:
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells:
1
Battery weight:
3 g
Lithium weight per battery:
0.07 g
Country of origin:
China
Products per shipping (inner) case:
1 pc(s)
Warnings:
Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
