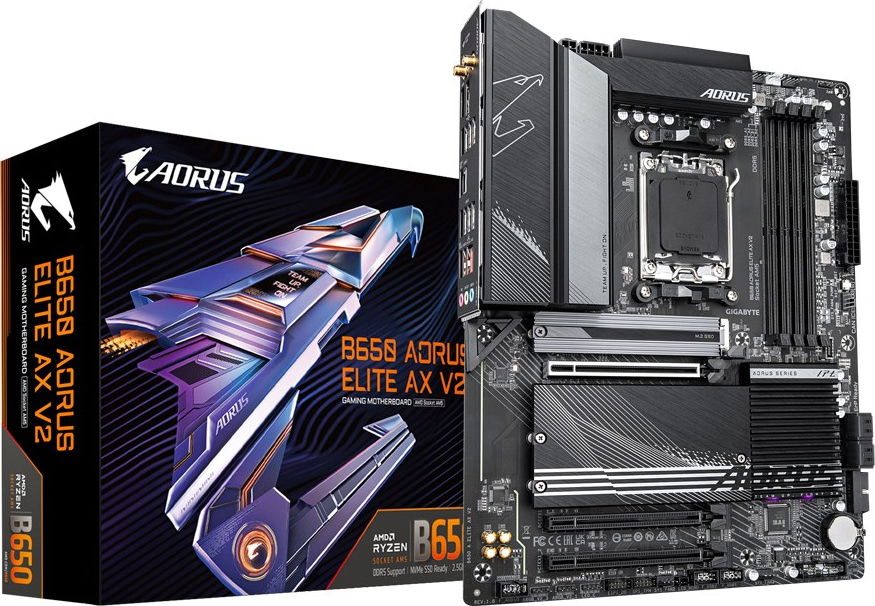

GIGABYTE B650 AORUS ELITE AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
VendorGigabyte
Product codeB650 AORUS ELITE AX V2
Warranty
3 years
Price€189.70
Price (excl. VAT)€152.98
Delivery
3-5 workdays
Quantity5+ pcs
Inbank financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Ships quicker
Warranty period:
3 year(s)
Supported processor sockets:
Socket AM5
Processor manufacturer:
AMD
Compatible processor series:
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor socket:
Socket AM5
Parallel processing technology support:
Not supported
HDCP:
Yes
Maximum resolution:
4096 x 2160 pixels
DirectX version:
12.0
Windows operating systems supported:
Windows 11 x64, Windows 10 x64
PC health monitoring:
Voltage, Fan, Temperature, Water cooling
Motherboard chipset family:
AMD
Motherboard form factor:
ATX
Audio chip:
Realtek ALC897
Audio output channels:
7.1 channels
Motherboard chipset:
AMD B650
Product colour:
Black
Memory channels:
Dual-channel
Supported memory types:
DDR5-SDRAM
Memory slots type:
DIMM
Number of memory slots:
4
Supported memory clock speed (max):
8000 MHz
Supported memory clock speeds:
7600 MHz, 7800, 8000, 6600, 4400, 5200, 6200, 6666, 6800, 7000, 6000, 6400, 4800, 5600, 7200
Unbuffered memory:
Yes
ECC сompatibility:
Non-ECC
Maximum internal memory:
256 GB
Maximum internal memory per slot:
64 GB
Height:
35 mm
Depth:
244 mm
Width:
305 mm
WLAN controller model:
Realtek RTL8852CE
Bluetooth version:
5.3
Wi-Fi standards:
802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b
Wi-Fi:
Yes
Ethernet LAN:
Yes
Top Wi-Fi standard:
Wi-Fi 6E (802.11ax)
Ethernet interface type:
2.5 Gigabit Ethernet
LAN controller:
Realtek RTL8125
Bluetooth:
Yes
EPS power connector (8-pin):
Yes
Front panel audio connector:
Yes
12V power connector:
Yes
Number of chassis fan connectors:
4
ATX Power connector (24-pin):
Yes
RGB LED pin header:
Yes
Front panel connector:
Yes
TPM connector:
Yes
CPU fan connector:
Yes
Number of RGB LED pin headers:
4
Number of SATA III connectors:
4
Number of water pump connectors:
2
USB 2.0 connectors:
2
Number of CPU fan connectors:
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
USB 3.2 Gen 2x2 connectors:
1
Clear CMOS jumper:
Yes
Desktop Management Interface (DMI) version:
2.7
BIOS type:
UEFI AMI
Batteries included:
Yes
Antenna included:
Yes
Screws included:
Yes
RAID levels:
1, 10, 0
Number of HDDs supported:
4
RAID support:
Yes
Number of storage drives supported:
7
Supported storage drive interfaces:
M.2, SATA III
Supported storage drive types:
HDD & SSD
Headphone outputs:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
2
Ethernet LAN (RJ-45) ports:
1
USB 2.0 ports quantity:
4
HDMI ports quantity:
1
HDMI version:
2.1
WiFi-AP antenna jack:
2
Line-in:
Yes
Microphone in:
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
1
DisplayPorts quantity:
1
DisplayPort version:
1.4
PCI Express x16 (Gen 3.x) slots:
2
Number of M.2 (M) slots:
3
PCI Express x16 (Gen 4.x) slots:
1
1st M.2 largest key size:
25110
1st M.2 highest PCI Express generation:
5.0
2nd M.2 highest PCI Express generation:
4.0
3rd M.2 largest key size:
25110
3rd M.2 highest PCI Express generation:
4.0
2nd M.2 largest key size:
25110
Number of battery cells:
1
Battery technology:
Lithium-Manganese Dioxide (LiMnO2)
Battery type:
CR2032
Battery weight:
3 g
Lithium weight per battery:
0.07 g
Products per shipping (inner) case:
1 pc(s)
Country of origin:
China
Warnings:
Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
