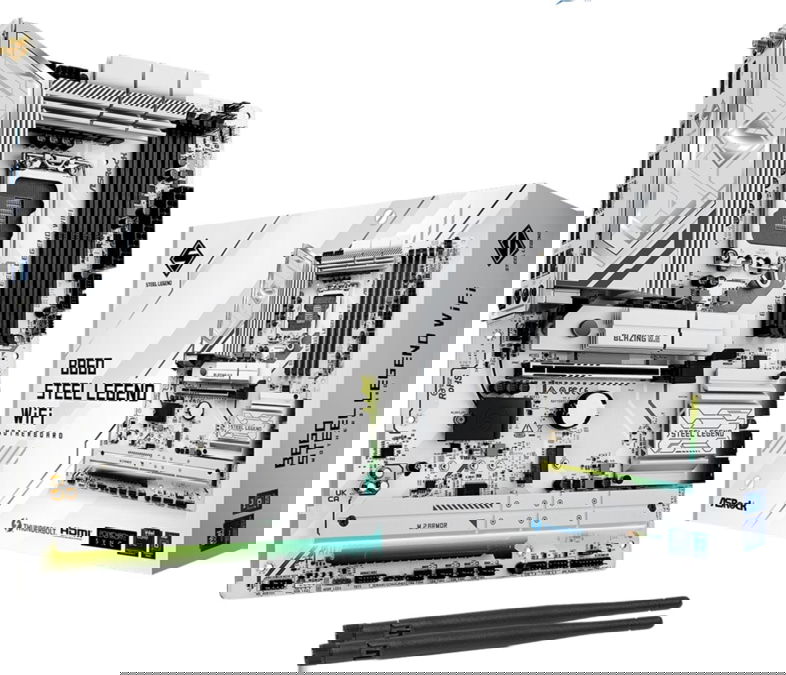

Asrock B860 Steel Legend WiFi Intel B860 LGA 1851 (Socket V1) ATX
<
>
<
>
Images are illustrative. The product shown may differ from the one offered or include components not part of the product set.
VendorAsrock
Product codeB860 STEEL LEGEND WIFI
Warranty
3 years
Price€215.80
Price (excl. VAT)€174.03
Availability4 pcs
Ships out in4-7 bd
Inbank financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Ships quicker
Compatible processor series:
Intel Core Ultra (Series 2)
Processor manufacturer:
Intel
Supported processor sockets:
LGA 1851
Processor socket:
LGA 1851 (Socket V1)
Maximum resolution:
7680 x 4320 pixels
Parallel processing technology support:
Not supported
HDCP:
Yes
Windows operating systems supported:
Windows 11 x64
Audio output channels:
7.1 channels
Motherboard form factor:
ATX
Product colour:
White
Motherboard chipset family:
Intel
Audio chip:
Realtek ALC1220
Motherboard chipset:
Intel B860
Maximum internal memory:
256 GB
ECC сompatibility:
Non-ECC
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Number of memory slots:
4
Supported memory types:
DDR5-SDRAM
Memory slots type:
DIMM
Width:
305 mm
Depth:
244 mm
LAN controller:
Dragon RTL8125BG
Bluetooth:
Yes
Top Wi-Fi standard:
Wi-Fi 6E (802.11ax)
Wi-Fi standards:
802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 5 (802.11ac)
Ethernet interface type:
2.5 Gigabit Ethernet
Ethernet LAN:
Yes
Wi-Fi:
Yes
Bluetooth version:
5.3
Front panel audio connector:
Yes
EPS power connector (8-pin):
Yes
Number of chassis fan connectors:
5
USB 2.0 connectors:
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
Number of EPS power connectors (8-pin):
2
Number of CPU fan connectors:
2
Number of RGB LED pin headers:
1
CPU fan connector:
Yes
TPM connector:
Yes
Number of SATA III connectors:
4
USB 3.2 Gen 2x2 connectors:
1
ATX Power connector (24-pin):
Yes
Number of water pump connectors:
1
12V power connector:
Yes
RGB LED pin header:
Yes
BIOS type:
UEFI AMI
Cables included:
SATA
Antenna included:
Yes
RAID support:
Yes
Supported storage drive interfaces:
PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types:
HDD & SSD
RAID levels:
1, 0, 5, 10
Number of storage drives supported:
8
S/PDIF out port:
Yes
HDMI version:
2.1
Ethernet LAN (RJ-45) ports:
1
USB 2.0 ports quantity:
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
2
DisplayPort version:
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
USB connector type:
USB Type-C, USB Type-A
Microphone in:
Yes
DisplayPorts quantity:
1
HDMI ports quantity:
1
Headphone outputs:
1
Thunderbolt ports quantity:
1
WiFi-AP antenna jack:
2
PCI Express x16 (Gen 5.x) slots:
1
3rd M.2 highest PCI Express generation:
4.0
2nd M.2 highest PCI Express generation:
4.0
1st M.2 largest key size:
2280
Number of M.2 (M) slots:
4
3rd M.2 largest key size:
2280
1st M.2 highest PCI Express generation:
5.0
2nd M.2 largest key size:
2280
PCI Express x16 (Gen 4.x) slots:
1
4th M.2 largest key size:
2280
4th M.2 highest PCI Express generation:
4.0
Warnings:
Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.
