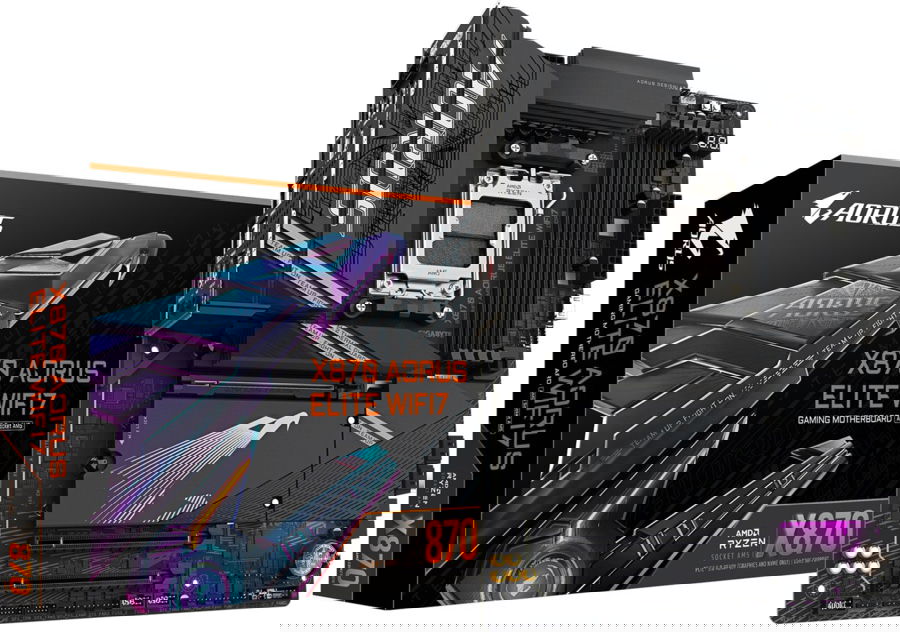

GIGABYTE X870 AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
VendorGigabyte
Product codeX870 AORUS ELITE WIFI7
Warranty
3 years
Price€295.00
Price (excl. VAT)€237.90
Delivery3-5 workdays
Quantity5+ pcs
TransportFREE IN ESTONIA!
Inbank financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Telia financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
ESTO financing calculator
NB! Järelmaks on finantskohustus,
millega kaasnevad kulud. Tutvu tingimustega siin.
Ships quicker
Warranty period:
3 year(s)
Supported processor sockets:
Socket AM5
Compatible processor series:
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer:
AMD
Maximum internal memory supported by processor:
256 GB
Processor socket:
Socket AM5
Parallel processing technology support:
Not supported
DirectX version:
12.0
On-board graphics card:
No
Windows operating systems supported:
Windows 11 x64
Product colour:
Black
Audio chip:
Realtek ALC1220
Motherboard chipset family:
AMD
PC health monitoring:
Voltage, Fan, Temperature
Motherboard form factor:
ATX
Audio output channels:
7.1 channels
Motherboard chipset:
AMD X870
Supported memory clock speeds:
7000, 8200 MHz, 6200, 6666, 4800, 6800, 6400, 4400, 6600, 8000 MHz, 7600 MHz, 7800, 5200, 6000, 5600, 7200
Supported memory module capacities:
24GB, 16GB, 32GB, 8GB, 1GB, 2GB, 4GB
Maximum internal memory:
256 GB
ECC сompatibility:
Non-ECC
Maximum internal memory per slot:
64 GB
Supported memory clock speed (max):
8200 MHz
Number of memory slots:
4
Supported memory types:
DDR5-SDRAM
Memory channels:
Dual-channel
Memory slots type:
DIMM
Depth:
244 mm
Height:
35 mm
Width:
305 mm
Bluetooth:
Yes
LAN controller:
Realtek RTL8125
Ethernet LAN:
Yes
Top Wi-Fi standard:
Wi-Fi 7 (802.11be)
Wi-Fi standards:
Wi-Fi 7 (802.11be)
Bluetooth version:
5.4
WLAN controller model:
MediaTek MT7925
Ethernet interface type:
2.5 Gigabit Ethernet
Wi-Fi:
Yes
Number of water pump connectors:
3
Number of RGB LED pin headers:
4
Number of SATA III connectors:
4
Front panel audio connector:
Yes
CPU fan connector:
Yes
ATX Power connector (24-pin):
Yes
Number of chassis fan connectors:
6
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
Front panel connector:
Yes
EPS power connector (8-pin):
Yes
USB 2.0 connectors:
2
Number of CPU fan connectors:
2
Number of EPS power connectors (8-pin):
2
USB 3.2 Gen 2x2 connectors:
1
RGB LED pin header:
Yes
TPM connector:
Yes
Clear CMOS button:
Yes
BIOS type:
UEFI AMI
Clear CMOS jumper:
Yes
Desktop Management Interface (DMI) version:
2.7
Batteries included:
Yes
Antenna included:
Yes
Screws included:
Yes
RAID levels:
10, 1, 0
Supported storage drive types:
HDD & SSD
RAID support:
Yes
Supported storage drive interfaces:
M.2, SATA III
Number of HDDs supported:
4
Number of storage drives supported:
8
DisplayPort version:
1.4
S/PDIF out port:
Yes
Ethernet LAN (RJ-45) ports:
1
DisplayPorts quantity:
2
USB 2.0 ports quantity:
2
USB4 Gen 2x2 ports quantity:
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
3
HDMI ports quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
Microphone in:
Yes
WiFi-AP antenna jack:
2
HDMI version:
2.1
Headphone outputs:
1
2nd M.2 largest key size:
22110
1st M.2 highest PCI Express generation:
5.0
1st M.2 largest key size:
25110
4th M.2 highest PCI Express generation:
4.0
3rd M.2 largest key size:
22110
4th M.2 largest key size:
22110
3rd M.2 highest PCI Express generation:
5.0
2nd M.2 highest PCI Express generation:
5.0
PCI Express x16 (Gen 3.x) slots:
1
Number of M.2 (M) slots:
4
PCI Express x16 (Gen 5.x) slots:
1
PCI Express x4 slots:
2
PCI Express x16 (Gen 4.x) slots:
1
Lithium weight per battery:
0.07 g
Battery technology:
Lithium-Manganese Dioxide (LiMnO2)
Battery type:
CR2032
Number of battery cells:
1
Battery weight:
3 g
Weight:
2.4 kg
Country of origin:
China
Products per shipping (inner) case:
1 pc(s)
Warnings:
Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
